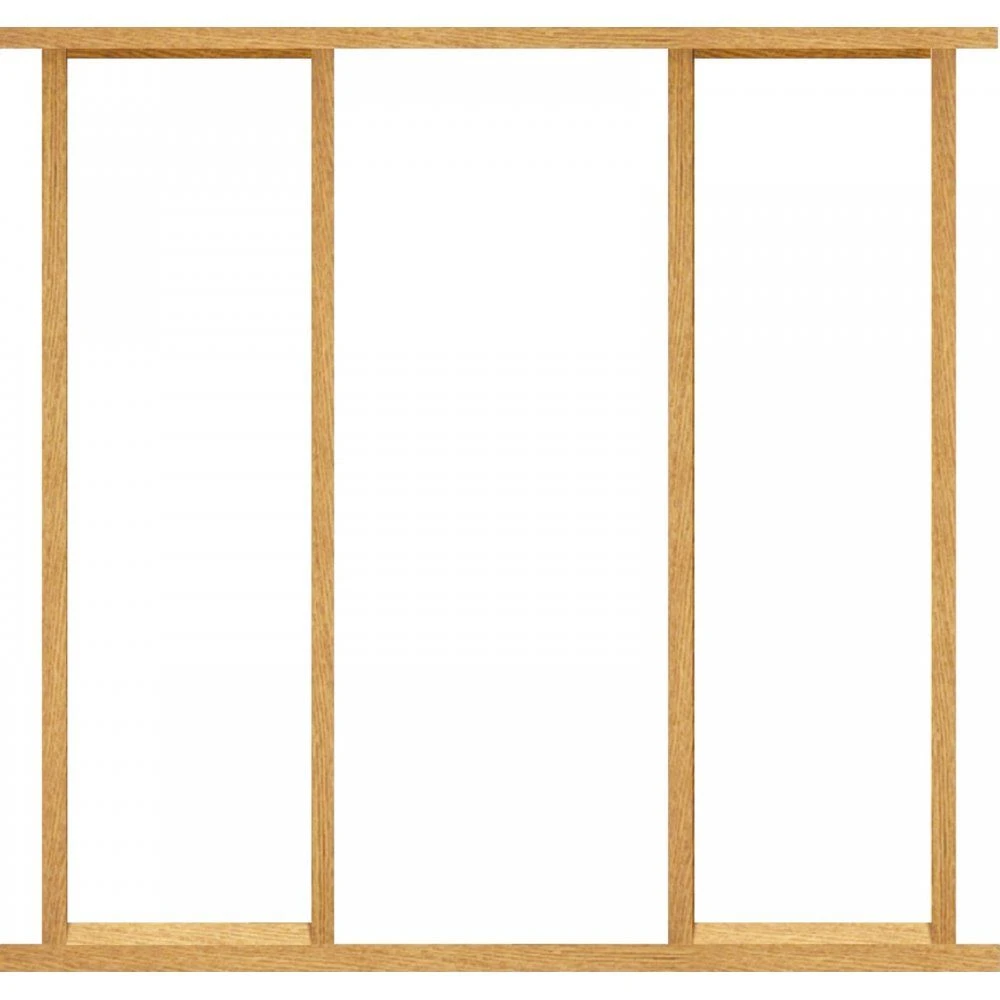

XL Joinery External Oak Effect Door Frame Kit With Sidelight

This oak effect timber side light door frame kit is ideal for use with pre made side light panels to compliment your main door, or for direct double glazing. Beading is supplied for use with a main door and sidelight(s). However, additional beading will be required if opting for double glazing

When assembled, mullions can be set to suit desired door width and overall frame size requirements. Universal side light dimension can be reduced from 588mm by up to 120mm per sidelight (60mm each side)

• Can be also be used where only a  single side light either hand is required
• Rebated for a standard 44mm thick door and grooved for joinery seal supplied
• Full assembly instructions included

Specifications

Material: Oak Effect
Type: Door Frame Kit
Style: Double side light
Fixings: Flat Packed. Fixings not included

Dimensions

78″ High Doors (2067mm H x 2178mm W (Overall maximum frame size when using 33″x 78″ door)
80″ High Doors (2118mm H x 2154mm W (Overall Maximum frame size when using 32″ x 80 ” door)

Technical Information

Frame Head:

57 x 68 x 2179mm x 1

Frame Mullion:

78″ = 68 x 68 x 2004mm x 2
80″ = 68 x 68 x 2055mm x 2

Frame Jamb:

78″ = 57 x 68 x 2004mm x 2
80″ = 57 x 68 x 2055mm x 2

Frame Cill:

40 x 134 2179mm x 1

Other  Components:

Weather bars: 1 x 918mm/ 2 x 600mm
Groove Infill: 2 x 2200mm
Cover Bead: 4 x 2100/ 4 x 700mm
Drip Bead Moulding: 1 x 2253mm
